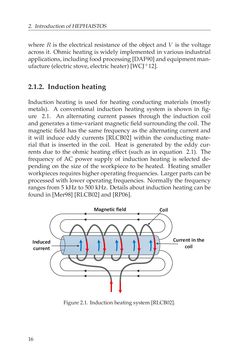

2. IntroductionofHEPHAISTOS whereR is the electrical resistance of the object andV is the voltage across it. Ohmic heating is widely implemented in various industrial applications, includingfoodprocessing[DAF90]andequipmentman- ufacture (electric stove,electricheater) [WCJ+12]. 2.1.2. Inductionheating Induction heating is used for heating conducting materials (mostly metals). A conventional induction heating system is shown in fig- ure 2.1. An alternating current passes through the induction coil and generates a time-variant magnetic field surrounding the coil. The magnetic field has the same frequency as the alternating current and it will induce eddy currents [RLCB02] within the conducting mate- rial that is inserted in the coil. Heat is generated by the eddy cur- rents due to the ohmic heating effect (such as in equation 2.1). The frequency of AC power supply of induction heating is selected de- pending on the size of the workpiece to be heated. Heating smaller workpiecesrequireshigheroperatingfrequencies. Largerpartscanbe processed with lower operating frequencies. Normally the frequency ranges from5kHzto500kHz. Detailsabout inductionheatingcanbe foundin[Mer98] [RLCB02]and[RP06]. Coil Current in the coil Induced current Magnetic field Figure2.1. Inductionheatingsystem[RLCB02]. 16
