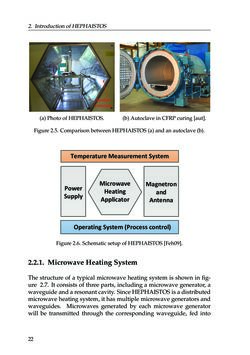

Bild der Seite - 22 -
Text der Seite - 22 -
2. IntroductionofHEPHAISTOS
Slotted
antennas
(a)PhotoofHEPHAISTOS. (b)Autoclave inCFRPcuring[aut].
Figure2.5. ComparisonbetweenHEPHAISTOS(a)andanautoclave (b).
Microwave
Heating
Applicator
Temperature Measurement System
Power
Supply
Operating System (Process control)
Magnetron
and
Antenna
Figure2.6. SchematicsetupofHEPHAISTOS[Feh09].
2.2.1. MicrowaveHeatingSystem
The structure of a typical microwave heating system is shown in fig-
ure 2.7. It consists of three parts, including a microwave generator, a
waveguideandaresonantcavity. SinceHEPHAISTOSisadistributed
microwaveheatingsystem, ithasmultiplemicrowavegeneratorsand
waveguides. Microwaves generated by each microwave generator
will be transmitted through the corresponding waveguide, fed into
22
