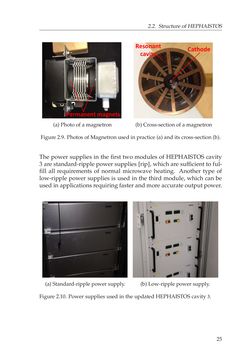

2.2. StructureofHEPHAISTOS Permanent magnets (a)Photoofamagnetron CathodeResonant cavity (b)Cross-sectionofamagnetron Figure2.9. PhotosofMagnetronusedinpractice (a)anditscross-section(b). The power supplies in the first two modules of HEPHAISTOS cavity 3 are standard-ripple power supplies [rip], which are sufficient to ful- fill all requirements of normal microwave heating. Another type of low-ripple power supplies is used in the third module, which can be usedinapplicationsrequiringfasterandmoreaccurateoutputpower. (a)Standard-ripplepowersupply. (b)Low-ripplepowersupply. Figure 2.10. Power supplies used in the updated HEPHAISTOS cavity 3. 25
