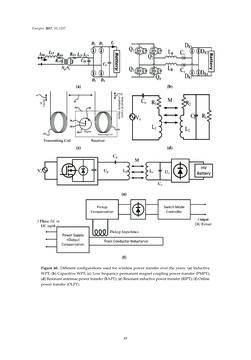

Energies 2017,10, 1217 (a) (b) (c) (d) (e) (f) Figure 60. Different configurations used forwireless power transfer over the years: (a) Inductive WPT; (b)CapacitiveWPT; (c) Lowfrequencypermanentmagnet couplingpower transfer (PMPT); (d)Resonantantennaepower transfer (RAPT); (e)Resonant inductivepower transfer (RIPT); (f)Online power transfer (OLPT). 49
