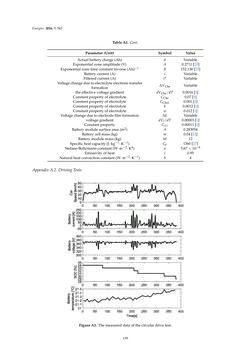

Energies 2016,9, 563 TableA1.Cont. Parameter (Unit) Symbol Value Actualbatterycharge (Ah) it Variable Exponentialzoneamplitude(V) A 0.2711 [23] Exponentialzone timeconstant inverse (Ah)´1 B 152.130 [23] Batterycurrent (A) i Variable Filteredcurrent (A) i* Variable Voltagechangeduetoelectrolyteelectrons transfer formation ΔVChe Variable theeffectivevoltagegradient dVChe/dT 0.0016 [1] Constantpropertyofelectrolyte CChe 0.07 [1] Constantpropertyofelectrolyte CChe1 0.001 [1] Constantpropertyofelectrolyte b 0.0012 [1] Constantpropertyofelectrolyte w 0.012 [1] Voltagechangeduetoelectrodefilmformation ΔE Variable voltagegradient dVr/dT 0.00003 [1] Constantproperty CE1 0.00011 [1] Batterymodulesurfacearea (m2) A 0.283954 Batterycellmass (kg) m 0.04 [23] Batterymodulemass (kg) M 12 Specificheatcapacity (J¨kg´1¨K´1) Cp 1360 [27] Stefane-Boltzmannconstant (W¨m´2¨K4) σ 5.67ˆ10´8 Emissivityofheat ε 0.95 Naturalheatconvectionconstant (W¨m´2¨K´1) h 4 AppendixA.2.DrivingTests FigureA1.Themeasureddataof thecirculardrive test. 139
