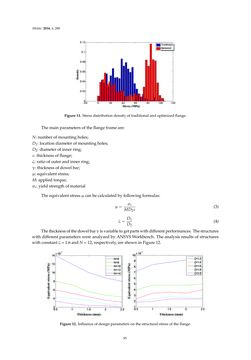

Image of the Page - 95 -
Text of the Page - 95 -
Metals 2016,6, 280
Figure11.Stressdistributiondensityof traditionalandoptimizedflange.
Themainparametersof theflangeframeare:
N: numberofmountingholes;
D1: locationdiameterofmountingholes;
D2: diameterof innerring;
ε: thicknessofflange;
ζ: ratioofouterandinnerring;
γ: thicknessofdowelbar;
μ: equivalentstress;
M: appliedtorque;
σs: yieldstrengthofmaterial
Theequivalentstressμcanbecalculatedbyfollowingformulas:
μ= σs
MD2ε (3)
ζ= D1
D2 (4)
Thethicknessofthedowelbarγ isvariabletogetpartswithdifferentperformances. Thestructures
withdifferentparameterswereanalyzedbyANSYSWorkbench. Theanalysis resultsof structures
withconstantζ=1.6andN=12, respectively,areshowninFigure12.
Figure12. Influenceofdesignparametersonthestructural stressof theflange.
95
