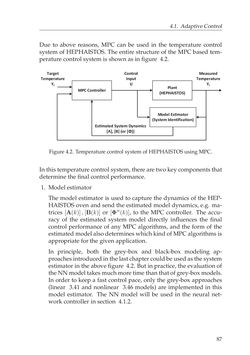

4.1. AdaptiveControl Due to above reasons, MPC can be used in the temperature control system of HEPHAISTOS. The entire structure of the MPC based tem- peraturecontrol systemisshownas infigure 4.2. Plant (HEPHAISTOS) MPC Controller Model Estimator (System Identification) Target Temperature Yt Measured Temperature Yr Control Input U Estimated System Dynamics [A], [B] (or [Φ]) Figure4.2. Temperaturecontrol systemofHEPHAISTOSusingMPC. Inthis temperaturecontrolsystem,therearetwokeycomponentsthat determine thefinalcontrolperformance. 1. Modelestimator The model estimator is used to capture the dynamics of the HEP- HAISTOS oven and send the estimated model dynamics, e.g. ma- trices [A(k)],[B(k)] or [Φn(k)], to the MPC controller. The accu- racy of the estimated system model directly influences the final control performance of any MPC algorithms, and the form of the estimatedmodelalsodetermineswhichkindofMPCalgorithmsis appropriate for thegivenapplication. In principle, both the grey-box and black-box modeling ap- proachesintroducedinthelastchaptercouldbeusedasthesystem estimator intheabovefigure 4.2. But inpractice, theevaluationof theNNmodeltakesmuchmoretimethanthatofgrey-boxmodels. In order to keep a fast control pace, only the grey-box approaches (linear 3.41 and nonlinear 3.46 models) are implemented in this model estimator. The NN model will be used in the neural net- workcontroller insection 4.1.2. 87
