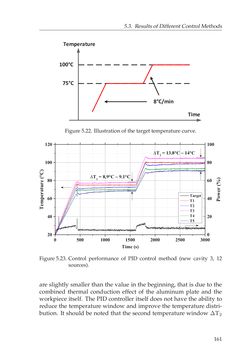

5.3. ResultsofDifferentControlMethods Time Temperature 75°C 100°C 8°C/min Figure5.22. Illustrationof the target temperaturecurve. 0 5 0 0 1 0 0 0 1 5 0 0 2 0 0 0 2 5 0 0 3 0 0 02 0 4 0 6 0 8 0 1 0 0 1 2 0 DT2 = 1 3 . 8 ° C ~ 1 4 ° C T i m e ( s ) T a r g e tT 1T 2T 3T 4T 5 DT1 = 8 . 9 ° C ~ 9 . 1 ° C 0 2 0 4 0 6 0 8 0 1 0 0 Figure5.23. Control performance of PID control method (new cavity 3, 12 sources). are slightly smaller than the value in the beginning, that is due to the combined thermal conduction effect of the aluminum plate and the workpiece itself. The PID controller itself does not have the ability to reduce the temperature window and improve the temperature distri- bution. It should be noted that the second temperature window ∆T2 161
