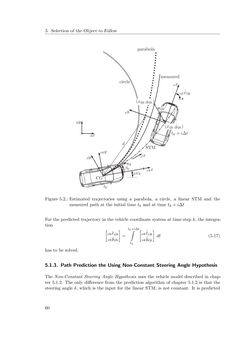

5. Selection of the Object to Follow CG xβyβ parabola circle d x0 y0 measured STM xvk yvk kβ kv kt xv yv kψ0 )i|ky,i|kx( )i|ky,ˆi|kx(ˆ i|kψˆvk t∆i+kt i|ke Figure 5.2.: Estimated trajectories using a parabola, a circle, a linear STM and the measured path at the initial time tk and at time tk+ i∆t For the predicted trajectory in the vehicle coordinate system at time stepk, the integra- tion [ vkxˆi|k vkyˆi|k ] = tk+i∆t∫ tk [ vk ˙ˆxi|k vk ˙ˆyi|k ] dt (5.17) has to be solved. 5.1.3. Path Prediction the Using Non-Constant Steering Angle Hypothesis The Non-Constant Steering Angle Hypothesis uses the vehicle model described in chap- ter 5.1.2. The only difference from the prediction algorithm of chapter 5.1.2 is that the steering angle δ, which is the input for the linear STM, is not constant. It is predicted 60
