Energies 2017,10, 1217

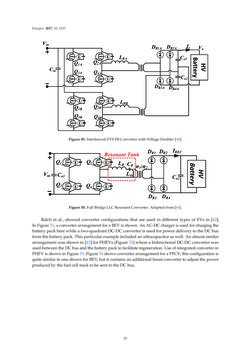

Figure49. InterleavedZVSFBConverterwithVoltageDoubler [46].
Figure50.FullBridgeLLCResonantConverter.Adaptedfrom[46].
Balch et al., showed converter configurations that are used in different types of EVs in [42].
InFigure51,aconverterarrangement foraBEVisshown.AnAC-DCcharger isusedforchargingthe
batterypackherewhilea two-quadrantDC-DCconverter isusedforpowerdelivery to theDCbus
formthebatterypack. Thisparticularexample includedanultracapacitoraswell.Analmostsimilar
arrangementwasshownin[42] forPHEVs(Figure52)whereabidirectionalDC-DCconverterwas
usedbetweentheDCbusandthebatterypackto facilitateregeneration.Useof integratedconverter in
PHEVisshowninFigure53. Figure54showsconverterarrangement foraPFCV; thisconfiguration is
quitesimilar tooneshownforBEV,but it containsanadditionalboostconverter toadjust thepower
producedbythe fuelcell stack tobesent to theDCbus.
43
