Energies 2016,9, 410
(a)
(b)
(c)

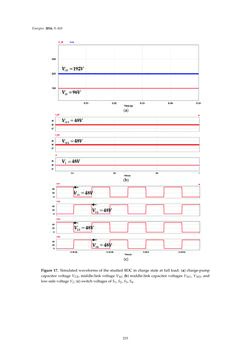

Figure 17. Simulatedwaveformsof the studiedBDC in charge state at full load: (a) charge-pump
capacitor voltageVCB,middle-linkvoltageVM; (b)middle-link capacitor voltagesVM1,VM2, and
low-sidevoltageVL; (c) switchvoltagesofS1,S2,S3,S4.
233
