capacity. In addition, when the charging rate of both the connected vehicles decreases due to
an increase of battery SOC, the total electricity purchased from the electrical grid decreases.
The first and second vehicles are charged to SOC of 80% after charging for 40 and 50 min,
respectively.

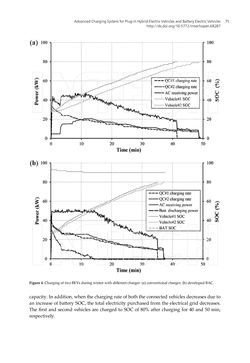

Figure 4. Charging of two BEVs during winter with different charger: (a) conventional charger, (b) developed BAC.
Advanced Charging System for Plug-in Hybrid Electric Vehicles and Battery Electric Vehicles
http://dx.doi.org/10.5772/intechopen.68287 75
