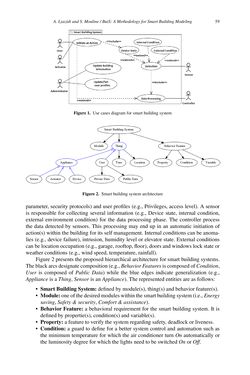

Image of the Page - 59 -
Text of the Page - 59 -
Figure1. Usecasesdiagramfor smartbuildingsystem
Figure2. Smartbuildingsystemarchitecture
parameter, security protocols) anduser profiles (e.g., Privileges, access level).A sensor
is responsible for collecting several information (e.g., Device state, internal condition,
external environment condition) for the data processing phase. The controller process
the data detected by sensors. This processingmay end up in an automatic initiation of
action(s)within thebuilding for its selfmanagement. Internal conditionscanbeanoma-
lies (e.g., device failure), intrusion, humidity level or elevator state.External conditions
canbe locationoccupation(e.g.,garage, rooftop,floor),doorsandwindowslockstateor
weather conditions (e.g.,windspeed, temperature, rainfall).
Figure2presents theproposedhierarchical architecture for smart building systems.
Theblackarcsdesignatecomposition(e.g.,BehaviorFeatures iscomposedofCondition,
User is composed of Public Data) while the blue edges indicate generalization (e.g.,
Appliance is aThing,Sensor is anAppliance).The representedentities areas follows:
• SmartBuildingSystem:definedbymodule(s), thing(s) andbehavior feature(s).
• Module:oneofthedesiredmoduleswithinthesmartbuildingsystem(i.e.,Energy
saving,Safety&security,Comfort&assistance).
• BehaviorFeature: a behavioral requirement for the smart building system. It is
definedbypropertie(s), condition(s) andvariable(s).
• Property:a feature toverify the systemregardingsafety,deadlockor liveness.
• Condition: a guard to define for a better systemcontrol and automation such as
theminimum temperature forwhich the air conditioner turnOn automatically or
the luminositydegree forwhich the lightsneed tobeswitchedOnorOff.
A.LyazidiandS.Mouline /BuiS:AMethodology forSmartBuildingModeling 59
