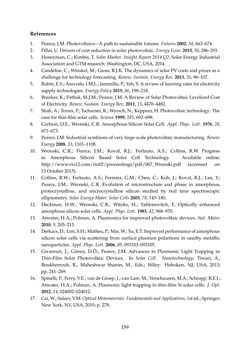

Image of the Page - 159 -
Text of the Page - 159 -
References
1. Pearce, J.M.Photovoltaics—Apathtosustainable futures.Futures2002,34, 663–674.
2. Pillai, U. Drivers of cost reduction in solar photovoltaic.EnergyEcon. 2015,50, 286–293.
3. Honeyman,C.;Kimbis,T.SolarMarket. InsightReport2014Q2; SolarEnergyIndustrial
AssociationandGTMresearch: Washington,DC,USA,2014.
4. Candelise,C.; Winskel,M.;Gross, R.J.K. ThedynamicsofsolarPV costsandpricesasa
challengefor technologyforecasting.Renew. Sustain. EnergyRev. 2013,26, 96–107.
5. Rubin,E.S.;Azevedo, I.M.L.; Jaramillo,P.;Yeh,S.Areviewof learningrates forelectricity
supply technologies.EnergyPolicy2015,86, 198–218.
6. Branker, K.; Pathak, M.J.M.; Pearce, J.M. A Review of Solar Photovoltaic Levelized Cost
ofElectricity.Renew.Sustain. EnergyRev. 2011,15, 4470–4482.
7. Shah, A.; Torres, P.; Tscharner, R.; Wyrsch, N.; Keppner, H. Photovoltaic technology: The
case for thin-filmsolarcells.Science1999,285, 692–698.
8. Carlson, D.E.; Wronski, C.R. Amorphous Silicon Solar Cell.Appl. Phys. Lett. 1976,28,
671–673.
9. Pearce, J.M. Industrial symbiosis of very large-scalephotovoltaic manufacturing.Renew.
Energy2008,33, 1101–1108.
10. Wronski, C.R.; Pearce, J.M.; Koval, R.J.; Ferlauto, A.S.; Collins, R.W. Progress
in Amorphous Silicon Based Solar Cell Technology. Available online:
http://www.rio12.com/rio02/proceedings/pdf/067_Wronski.pdf (accessed on
13October2015).
11. Collins, R.W.; Ferlauto, A.S.; Ferreira, G.M.; Chen, C.; Koh, J.; Koval, R.J.; Lee, Y.;
Pearce, J.M.; Wronski, C.R. Evolution of microstructure and phase in amorphous,
protocrystalline, and microcrystalline silicon studied by real time spectroscopic
ellipsometry.SolarEnergyMater. SolarCells2003,78, 143–180.
12. Deckman, H.W.; Wronski, C.R.; Witzke, H.; Yablonovitch, E. Optically enhanced
amorphoussiliconsolarcells.Appl. Phys. Lett. 1983,42, 968–970.
13. Atwater, H.A.; Polman, A. Plasmonics for improved photovoltaic devices.Nat.Mater.
2010,9, 205–213.
14. Derkacs,D.;Lim,S.H.;Matheu,P.;Mar,W.;Yu,E.T.Improvedperformanceofamorphous
silicon solar cells via scattering from surface plasmon polaritons in nearby metallic
nanoparticles.Appl. Phys. Lett. 2006,89, 093103–093105.
15. Gwamuri, J.; GĂĽney, D.Ă–.; Pearce, J.M. Advances in Plasmonic Light Trapping in
Thin-Film Solar Photovoltaic Devices. In Solar Cell. Nanotechnology; Tiwari, A.,
Boukherroub, R., Maheshwar Sharon, M., Eds.; Wiley: Hoboken, NJ, USA, 2013;
pp.241–269.
16. Spinelli,P.; Ferry,V.E.; van deGroep, J.; van Lare, M.; Verschuuren, M.A.; Schropp, R.E.I.;
Atwater, H.A.; Polman, A. Plasmonic light trapping in thin-film Si solar cells. J.Opt.
2012,14, 024002–024012.
17. Cai,W.;Salaev,V.M.OpticalMetamaterials: FundamentalsandApplications,1sted.;Springer:
NewYork,NY,USA,2010;p.278.
159
