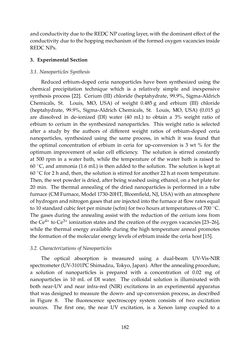

Image of the Page - 182 -
Text of the Page - 182 -
andconductivityduetotheREDCNPcoatinglayer,withthedominanteffectof the
conductivitydueto thehoppingmechanismof theformedoxygenvacancies inside
REDCNPs.
3. ExperimentalSection
3.1.NanoparticlesSynthesis
Reduced erbium-doped ceria nanoparticles have been synthesized using the
chemical precipitation technique which is a relatively simple and inexpensive
synthesis process [22]. Cerium (III) chloride (heptahydrate, 99.9%, Sigma-Aldrich
Chemicals, St. Louis, MO, USA) of weight 0.485g and erbium (III) chloride
(heptahydrate, 99.9%, Sigma-Aldrich Chemicals, St. Louis, MO, USA) (0.015 g)
are dissolved in de-ionized (DI) water (40 mL) to obtain a 3% weight ratio of
erbium to cerium in the synthesized nanoparticles. This weight ratio is selected
after a study by the authors of different weight ratios of erbium-doped ceria
nanoparticles, synthesized using the same process, in which it was found that
the optimal concentration of erbium in ceria for up-conversion is 3 wt % for the
optimum improvement of solar cell efficiency. The solution is stirred constantly
at 500 rpm in a water bath, while the temperature of the water bath is raised to
60 ˝C, and ammonia (1.6 mL) is then added to the solution. The solution is kept at
60˝Cfor2hand, then, thesolution isstirredforanother22hat roomtemperature.
Then, the wet powder is dried, after being washed using ethanol, on a hot plate for
20 min. The thermal annealing of the dried nanoparticles is performed in a tube
furnace (CMFurnace,Model1730-20HT,Bloomfield,NJ,USA)withanatmosphere
ofhydrogenandnitrogengases thatare injectedintothefurnaceatflowratesequal
to10standardcubic feetperminute(scfm)for twohoursat temperaturesof700˝C.
The gases during the annealing assist with the reduction of the cerium ions from
the Ce4+ to Ce3+ ionization states and the creation of the oxygen vacancies [23–26],
while the thermal energy available during the high temperature anneal promotes
the formationof themolecularenergy levelsoferbiuminside theceriahost [15].
3.2. CharacterizationsofNanoparticles
The optical absorption is measured using a dual-beam UV-Vis-NIR
spectrometer(UV-3101PCShimadzu,Tokyo, Japan). After theannealingprocedure,
a solution of nanoparticles is prepared with a concentration of 0.02 mg of
nanoparticles in 10 mL of DI water. The colloidal solution is illuminated with
both near-UV and near infra-red (NIR) excitations in an experimental apparatus
that was designed to measure the down- and up-conversion process, as described
in Figure 8. The fluorescence spectroscopy system consists of two excitation
sources. The first one, the near UV excitation, is a Xenon lamp coupled to a
182
