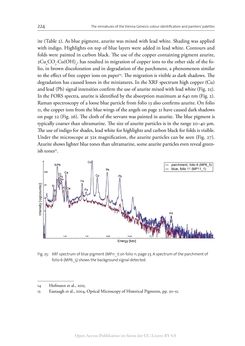

Image of the Page - 224 -
Text of the Page - 224 -
224 The miniatures of the Vienna Genesis: colour identification and painters’ palettes
ite (Table 2). As blue pigment, azurite was mixed with lead white. Shading was applied
with indigo. Highlights on top of blue layers were added in lead white. Contours and
folds were painted in carbon black. The use of the copper containing pigment azurite,
2Cu2CO3·Cu(OH)2, has resulted in migration of copper ions to the other side of the fo-
lio, in brown discoloration and in degradation of the parchment, a phenomenon similar
to the effect of free copper ions on paper14. The migration is visible as dark shadows. The
degradation has caused losses in the miniatures. In the XRF spectrum high copper (Cu)
and lead (Pb) signal intensities confirm the use of azurite mixed with lead white (Fig. 25).
In the FORS spectra, azurite is identified by the absorption maximum at 640 nm (Fig. 2).
Raman spectroscopy of a loose blue particle from folio 13 also confirms azurite. On folio
11, the copper ions from the blue wings of the angels on page 21 have caused dark shadows
on page 22 (Fig. 26). The cloth of the servant was painted in azurite. The blue pigment is
typically coarser than ultramarine. The size of azurite particles is in the range 20–40 µm.
The use of indigo for shades, lead white for highlights and carbon black for folds is visible.
Under the microscope at 32x magnification, the azurite particles can be seen (Fig. 27).
Azurite shows lighter blue tones than ultramarine, some azurite particles even reveal green-
ish tones15.
14 Hofmann et al., 2015.
15 Eastaugh et al., 2004, Optical Microscopy of Historical Pigments, pp. 50–51.
Fig. 25: XRF spectrum of blue pigment (MP11_1) on folio 11, page 23. A spectrum of the parchment of
folio 6 (MP6_5) shows the background signal detected.
