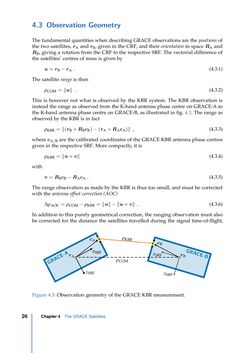

4.3 Observation Geometry The fundamental quantities when describing GRACE observations are the positions of the two satellites,rA andrB, given in the CRF, and their orientation in spaceRA and RB, giving a rotation from the CRF to the respective SRF. The vectorial difference of the satellites’ centres of mass is given by u=rB−rA . (4.3.1) The satellite range is then ρCOM=‖u‖ . (4.3.2) This is however not what is observed by the KBR system. The KBR observation is instead the range as observed from the K-band antenna phase centre on GRACE-A to the K-band antenna phase centre on GRACE-B, as illustrated in fig. 4.3. The range as observed by the KBR is in fact ρKBR=‖(rB+RBcB)−(rA+RAcA)‖ , (4.3.3) wherecA/B are the calibrated coordinates of the GRACE KBR antenna phase centres given in the respective SRF. More compactly, it is ρKBR=‖u+v‖ (4.3.4) with v=RBcB−RAcA . (4.3.5) The range observation as made by the KBR is thus too small, and must be corrected with the antenna offset correction (AOC) ∆ρAOC= ρCOM−ρKBR=‖u‖−‖u+v‖ . (4.3.6) In addition to this purely geometrical correction, the ranging observation must also be corrected for the distance the satellites travelled during the signal time-of-flight, cA rA rB cB ρKBR ρCOM zSRF xSRF xSRF zSRF GR AC E-A GRACE-B Figure 4.3: Observation geometry of the GRACE KBR measurement. Chapter4 The GRACE Satellites26
