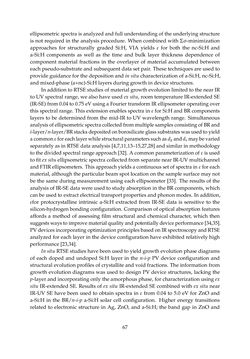

Bild der Seite - 67 -
Text der Seite - 67 -
ellipsometric spectra is analyzed and full understanding of the underlying structure
is not required in the analysis procedure. When combined withΣσ-minimization
approaches for structurally graded Si:H, VIA yields ε for both the nc-Si:H and
a-Si:H components as well as the time and bulk layer thickness dependence of
component material fractions in the overlayer of material accumulated between
eachpseudo-substrateandsubsequentdatasetpair. These techniquesareusedto
provideguidancefor thedepositionand in situcharacterizationofa-Si:H,nc-Si:H,
andmixed-phase (a+nc)-Si:Hlayersduringgrowth indevicestructures.
In addition to RTSE studies of material growth evolution limited to the near IR
toUVspectral range,wealsohaveused exsitu, roomtemperature IR-extendedSE
(IR-SE) from 0.04 to 0.75 eV using a Fourier transform IR ellipsometer operating over
this spectral range. Thisextensionenablesspectra in ε forSi:HandBRcomponents
layers to be determined from the mid-IR to UV wavelength range. Simultaneous
analysisofellipsometricspectracollectedfrommultiplesamplesconsistingofBRand
i-layer/n-layer/BRstacksdepositedonborosilicateglasssubstrateswasusedtoyield
acommonε foreachlayerwhilestructuralparameterssuchasdb andds maybevaried
separatelyas inRTSEdataanalysis [4,7,11,13–15,27,28]andsimilar inmethodology
to thedividedspectral rangeapproach[32]. Acommonparameterizationof ε isused
tofit exsituellipsometricspectracollectedfromseparatenear IR-UVmultichannel
andFTIRellipsometers. Thisapproachyieldsacontinuoussetofspectra in ε foreach
material, although theparticular beamspot location onthe samplesurface maynot
be the same during measurement using each ellipsometer [33]. The results of the
analysisof IR-SEdatawereusedtostudyabsorption in theBRcomponents,which
can be used to extract electrical transport properties and phonon modes. In addition,
εfor protocrystalline intrinsic a-Si:H extracted from IR-SE data is sensitive to the
silicon-hydrogenbondingconfiguration. Comparisonofopticalabsorptionfeatures
affords a method of assessing film structural and chemical character, which then
suggestswaystoimprovematerialqualityandpotentiallydeviceperformance[34,35].
PVdevicesincorporatingoptimizationprinciplesbasedonIRspectroscopyandRTSE
analyzed for each layer in the device configuration have exhibited relatively high
performance [23,34].
InsituRTSEstudieshavebeenusedtoyieldgrowthevolutionphasediagrams
of each doped and undoped Si:H layer in the n-i-p PV device configuration and
structuralevolutionprofilesofcrystalliteandvoidfractions. The informationfrom
growth evolution diagrams was used to design PV device structures, lacking the
p-layerandincorporatingonly theamorphousphase, forcharacterizationusing ex
situ IR-extended SE. Results of ex situ IR-extended SE combined with ex situ near
IR-UV SE have been used to obtain spectra in ε from 0.04 to 5.0 eV for ZnO and
a-Si:H in the BR/n-i-p a-Si:H solar cell configuration. Higher energy transitions
related to electronic structure in Ag, ZnO, and a-Si:H; the band gap in ZnO and
67
