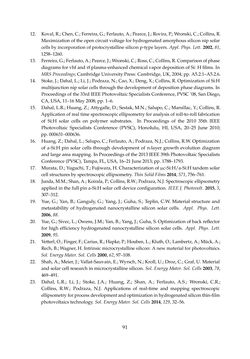

Bild der Seite - 91 -
Text der Seite - 91 -
12. Koval,R.;Chen,C.;Ferreira,G.;Ferlauto,A.;Pearce, J.;Rovira,P.;Wronski,C.;Collins,R.
Maximization of the open circuit voltage for hydrogenated amorphous silicon nip solar
cells by incorporation of protocrystalline silicon p-type layers. Appl. Phys. Lett. 2002, 81,
1258–1260.
13. Ferreira,G.;Ferlauto,A.;Pearce, J.;Wronski,C.;Ross,C.;Collins,R.Comparisonofphase
diagramsforvhfandrfplasma-enhancedchemicalvapordepositionofSi: Hfilms. In
MRS Proceedings; Cambridge University Press: Cambridge, UK, 2004; pp. A5.2.1–A5.2.6.
14. Stoke, J.; Dahal, L.; Li, J.; Podraza, N.; Cao, X.; Deng, X.; Collins, R. Optimization of Si:H
multijunction nip solar cells through the development of deposition phase diagrams. In
Proceedingsof the33rdIEEE PhotovoltaicSpecialistsConference, PVSC’08, SanDiego,
CA,USA,11–16May2008;pp.1–6.
15. Dahal,L.R.;Huang,Z.;Attygalle,D.;Sestak,M.N.;Salupo,C.;Marsillac,Y.;Collins,R.
Application of real time spectroscopic ellipsometry for analysis of roll-to-roll fabrication
of Si:H solar cells on polymer substrates. In Proceedings of the 2010 35th IEEE
Photovoltaic Specialists Conference (PVSC), Honolulu, HI, USA, 20–25 June 2010;
pp.000631–000636.
16. Huang, Z.; Dahal,L.; Salupo, C.; Ferlauto, A.; Podraza,N.J.; Collins, R.W. Optimization
of a-Si:H pin solar cells through development of n-layer growth evolution diagram
andlargeareamapping. InProceedingsof the2013IEEE39thPhotovoltaicSpecialists
Conference (PVSC),Tampa,FL,USA,16–21 June2013;pp.1788–1793.
17. Murata,D.;Yuguchi,T.;Fujiwara,H.Characterizationofµc-Si:H/a-Si:Htandemsolar
cell structuresbyspectroscopicellipsometry. ThinSolidFilms 2014, 571, 756–761.
18. Junda,M.M.;Shan,A.;Koirala,P.;Collins,R.W.;Podraza,N.J.Spectroscopicellipsometry
applied in the full pin a-Si:H solar cell device configuration. IEEE J. Photovolt. 2015, 5,
307–312.
19. Yue, G.; Yan, B.; Ganguly, G.; Yang, J.; Guha, S.; Teplin, C.W. Material structure and
metastability of hydrogenated nanocrystalline silicon solar cells. Appl. Phys. Lett.
2006, 88.
20. Yue,G.;Sivec,L.;Owens, J.M.;Yan,B.;Yang, J.;Guha,S.Optimizationofbackreflector
for high efficiency hydrogenated nanocrystalline silicon solar cells. Appl. Phys. Lett.
2009, 95.
21. Vetterl,O.;Finger,F.;Carius,R.;Hapke,P.;Houben,L.;Kluth,O.;Lambertz,A.;MĂĽck,A.;
Rech, B.; Wagner,H. Intrinsic microcrystallinesilicon: Anew material for photovoltaics.
Sol. EnergyMater. Sol. Cells 2000, 62, 97–108.
22. Shah,A.;Meier, J.;Vallat-Sauvain,E.;Wyrsch,N.;Kroll,U.;Droz,C.;Graf,U.Material
andsolarcell research inmicrocrystallinesilicon. Sol. EnergyMater. Sol. Cells 2003,78,
469–491.
23. Dahal, L.R.; Li, J.; Stoke, J.A.; Huang, Z.; Shan, A.; Ferlauto, A.S.; Wronski, C.R.;
Collins, R.W.; Podraza, N.J. Applications of real-time and mapping spectroscopic
ellipsometryforprocessdevelopmentandoptimizationinhydrogenatedsiliconthin-film
photovoltaics technology. Sol. EnergyMater. Sol. Cells 2014, 129, 32–56.
91
