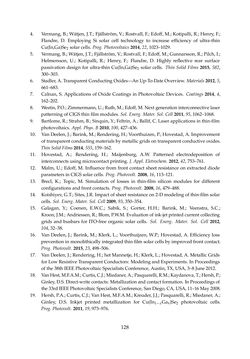

Seite - 128 - in Photovoltaic Materials and Electronic Devices

4. Vermang, B.; Wätjen, J.T.; Fjällström, V.; Rostvall, F.; Edoff, M.; Kotipalli, R.; Henry, F.; Flandre, D. Employing Si solar cell technology to increase efficiency of ultra-thin Cu(In,Ga)Se2 solarcells. Prog. Photovoltaics2014,22, 1023–1029. 5. Vermang,B.;Wätjen, J.T.;Fjällström,V.;Rostvall,F.;Edoff,M.;Gunnarsson,R.;Pilch, I.; Helmersson, U.; Kotipalli, R.; Henry, F.; Flandre, D. Highly reflective rear surface passivation design for ultra-thin Cu(In,Ga)Se2 solar cells. Thin Solid Films 2015, 582, 300–303. 6. Stadler,A.TransparentConductingOxides—AnUp-To-DateOverview. Materials2012,5, 661–683. 7. Calnan, S. Applications of Oxide Coatings in Photovoltaic Devices. Coatings 2014, 4, 162–202. 8. Westin,P.O.; Zimmermann,U.; Ruth,M.;Edoff,M.Nextgeneration interconnective laser patterningofCIGSthinfilmmodules. Sol. Energ. Mater. Sol. Cell2011, 95, 1062–1068. 9. Bartlome, R.; Strahm, B.; Sinquin, Y.; Feltrin, A.; Ballif, C. Laser applications in thin-film photovoltaics. Appl. Phys. B2010,100, 427–436. 10. VanDeelen, J.;Barink,M.;Rendering,H.;Voorthuizen,P.;Hovestad,A. Improvement of transparent conducting materials by metallic grids on transparent conductive oxides. ThinSolidFilms2014,555, 159–162. 11. Hovestad, A.; Rendering, H.; Maijenburg, A.W. Patterned electrodeposition of interconnectsusingmicrocontactprinting. J.Appl. Eletrochem. 2012,42, 753–761. 12. Malm, U.; Edoff, M. Influence from front contact sheet resistance on extracted diode parameters inCIGSsolarcells. Prog. Photovolt. 2008,16, 113–121. 13. Brecl, K.; Topic, M. Simulation of losses in thin-film silicon modules for different configurationsandfrontcontacts. Prog. Photovolt. 2008, 16, 479–488. 14. Koishiyev,G.T.;Sites, J.R. Impactof sheet resistanceon2-Dmodelingof thin-filmsolar cells. Sol. Energ. Mater. Sol. Cell2009,93, 350–354. 15. Galagan, Y.; Coenen, E.W.C.; Sabik, S.; Gorter, H.H.; Barink, M.; Veenstra, S.C.; Kroon, J.M.; Andriessen,R.; Blom,P.W.M.Evaluationof ink-jetprintedcurrentcollecting grids and busbars for ITO-free organic solar cells. Sol. Energ. Mater. Sol. Cell 2012, 104, 32–38. 16. Van Deelen, J.; Barink, M.; Klerk, L.; Voorthuijzen, W.P.; Hovestad, A. Efficiency loss prevention inmonolithically integratedthinfilmsolarcellsby improvedfrontcontact. Prog. Photovolt. 2015,23, 498–506. 17. VanDeelen, J.;Rendering,H.;hetMannetje,H.;Klerk,L.;Hovestad,A.MetallicGrids for Low Resistive Transparent Conductors: Modeling and Experiments. In Proceedings of the38th IEEEPhotovoltaicSpecialistsConference,Austin,TX,USA,3–8 June2012. 18. VanHest,M.F.A.M.;Curtis,C.J.;Miedaner,A.;Pasquarelli,R.M.;Kaydanova,T.;Hersh,P.; Ginley,D.S.Direct-writecontacts: Metallizationandcontact formation. InProceedingsof the 33rd IEEE Photovoltaic Specialists Conference, San Diego, CA, USA, 11–16 May 2008. 19. Hersh,P.A.; Curtis, C.J.; VanHest, M.F.A.M.; Kreuder, J.J.; Pasquarelli, R.; Miedaner,A.; Ginley, D.S. Inkjet printed metallization for Cu(In1´xGax)Se2 photovoltaic cells. Prog.Photovolt. 2011,19, 973–976. 128
