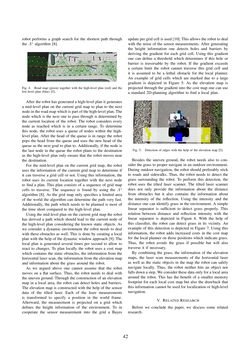

Bild der Seite - 42 -
Text der Seite - 42 -
robot performs a graph search for the shortest path through
theA∗ algorithm [8].
Fig. 4. Road map (green) together with the high-level plan (red) and the
low-level plan (blue) [5].
After the robot has generated a high-level plan it generates
a mid-level plan on the current grid map to plan to the next
node in the roadmapwhich ispartof thehigh-levelplan.The
node which is the next one to pass through is determined by
the current location of the robot. The robot considers every
node as reached which is in a certain range. To determine
this node, the robot uses a queue of nodes within the high-
level plan. After the head of the queue is in range the robot
pops the head from the queue and uses the new head of the
queue as the next goal to plan to. Additionally, if the node is
the last node in the queue the robot plans to the destination
as the high-level plan only ensure that the robot moves near
the destination.
For the mid-level plan on the current grid map, the robot
uses the information of the current grid map to determine if
it can traverse a grid cell or not. Using this information, the
robot uses its current location together with the next node
to find a plan. This plan consists of a sequence of grid map
cells to traverse. The sequence is found by using the A∗
algorithm [8]. As the grid map only specifies a limited area
of the world the algorithm can determine the path very fast.
Additionally, the path which needs to be planned is most of
the time short compared to the high-level plan.
Using the mid-level plan on the current grid map the robot
has derived a path which should lead to the current node of
the high-level plan considering the known static objects. As
we consider a dynamic environment the robot needs to deal
with these obstacles as well. This is done by creating a local
plan with the help of the dynamic window approach [9]. The
local plan is generated several times per second to allow to
react to changes. To plan locally the robot uses a cost map
which contains the static obstacles, the information from the
horizontal laser scan, the information from the elevation map
and information about the grass around the robot.
As we argued above one cannot assume that the robot
moves on a flat surface. Thus, the robot needs to deal with
the uneven ground. Through the construction of an elevation
map in a local area, the robot can detect holes and barriers.
The elevation map is constructed with the help of the sensor
data of the tilted laser. Each of the laser measurements
is transformed to specify a position in the world frame.
Afterward, the measurement is projected on a grid which
defines the height information of the environment. To in
cooperate the sensor measurement into the grid a Bayes update per grid cell is used [10]. This allows the robot to deal
with the noise of the sensor measurements. After generating
the height information one detects holes and barriers by
deriving the gradient for each grid cell. Using this gradient
one can define a threshold which determines if this hole or
barrier is traversable by the robot. If the gradient exceeds
a certain limit the robot cannot traverse this grid cell and
it is assumed to be a lethal obstacle for the local planner.
An example of grid cells which are marked due to a large
gradient is depicted in Figure 5. As the elevation map is
projected through the gradient into the cost map one can use
a standard 2D-planning algorithm to find a local plan.
Fig. 5. Detection of edges with the help of the elevation map [5].
Besides the uneven ground, the robot needs also to con-
sider the grass to proper navigate in an outdoor environment.
During outdoor navigation, the robot should preferably stick
to roads and sidewalks. Thus, the robot needs to detect the
grass surrounding the robot. To perform this detection, the
robot uses the tilted laser scanner. The tilted laser scanner
does not only provide the information about the distance
from obstacles but it also contains the information about
the intensity of the reflection. Using the intensity and the
distance one can identify grass in the environment. A simple
linear separator is sufficient to detect grass properly. This
relation between distance and reflection intensity with the
linear separator is depicted in Figure 6. With the help of
this classifier, the robot can detect grass in its vicinity. An
example of this detection is depicted in Figure 7. Using this
information, the robot adds increased costs in the cost map
for the local planner on those positions which indicate grass.
Thus, the robot avoids the grass if possible but will also
traverse it if necessary.
By combining the grass, the information of the elevation
maps, the laser scan measurements of the horizontal laser
as well as the static objects in the map the robot can safely
navigate locally. Thus, the robot neither hits an object nor
fallsdownastep.Weconsider thesedataonly fora local area
around the robot. This has the benefit of a smaller memory
footprint for each local cost map but also the drawback that
this information cannot be used for localization or high-level
navigation.
V. RELATED RESEARCH
Before we conclude the paper, we discuss some related
research.
