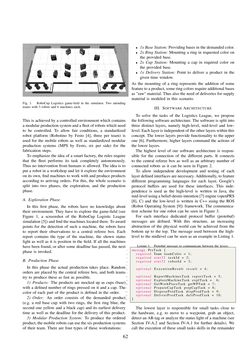

Fig. 1. RoboCup Logistics game-field in the simulator. Two attending teams with 3 robots and 6 machines each. This is achieved by a controlled environment which contains amodularproductionsystemandafleetof robotswhichneed to be controlled. To allow fair conditions, a standardized robot platform (Robotino by Festo [4], three per team) is used for the mobile robots as well as standardized modular production systems (MPS by Festo, six per side) for the fabrication steps. To emphasize the idea of a smart factory, the rules require that the fleet performs its task completely autonomously. Thus no intervention from humans is allowed. The idea is to put a robot in a workshop and let it explore the environment on its own, find machines to work with and produce products according to arriving orders. For this, the whole scenario is split into two phases, the exploration, and the production phase. A. Exploration Phase In this first phase, the robots have no knowledge about their environment. They have to explore the game-field (see Figure 1, a screenshot of the RoboCup Logistic League simulation [5]) and find the machines located there. To award points for the detection of such a machine, the robots have to report their observations to a central referee box. Each report contains the type of the machine, the shown status light as well as it is position in the field. If all the machines have been found, or after some deadline has passed, the next phase is invoked. B. Production Phase In this phase the actual production takes place. Random orders are placed by the central referee box, and both teams try to produce these as fast as possible. 1) Products: The products are mocked up as cups (base) with a defined number of rings pressed on it and a cap. The color of each part of the product is defined in the order. 2) Order: An order consists of the demanded product (e.g. a red base cup with two rings, the first ring blue, the second one yellow and a black cap) and its earliest delivery time as well as the deadline for the delivery of this product. 3) Modular Production System: To produce the ordered product, themobile robotscanuse thesixproductionsystems of their team. There are four types of these workstations: • 1x Base Station: Providing bases in the demanded color. • 2x Ring Station: Mounting a ring in requested color on the provided base. • 2x Cap Station: Mounting a cap in required color on the provided base. • 1x Delivery Station: Point to deliver a product in the given time window. As the mounting of a ring represents the addition of some feature toaproduct, someringcolors requireadditionalbases as ”raw“ material. Thus also the need of deliveries for supply material is modeled in this scenario. III. SOFTWARE ARCHITECTURE To solve the tasks of the Logistics League, we propose the following software architecture. The software is split into three distinct layers, namely high-level, mid-level and low- level.Each layer is independentof theother layerswithin this concept. The lower layers provide functionality to the upper one [6]. Furthermore, higher layers command the actions of the lower layers. The highest level of our software architecture is respon- sible for the connection of the different parts. It connects to the central referee box as well as an arbitrary number of connected robots as it can be seen in Figure 2. To allow independent development and testing of each layerdefined interfacesarenecessary.Additionally, to feature different programming languages for each layer, Google’s protocol buffers are used for these interfaces. This inde- pendence is used as the high-level is written in Java, the mid-levelusingabelief-desire-intention[7]engine(openPRS [8], C) and the low-level is written in C++ using the ROS (Robot Operating System [9]) framework. The communica- tion scheme for one robot can be seen in Figure 3. For each interface dedicated protocol buffer (protobuf) messages are defined. With this structure, an increasing abstraction of the physical world can be achieved from the bottom up to the top. The message used between the high- level to the midlevel can be seen as an example in Listing 1. Listing 1. Protobuf message to communicate between the layers. 1 message PrsTask { 2 required Team teamColor = 1; 3 required uint32 taskId = 2; 4 required uint32 robotId = 3; 5 6 optional ExecutionResult resul t = 4; 7 8 optional ReportMachinesTask reportTask = 5; 9 optional ExploreMachineTask explTask = 6; 10 optional GetWorkPieceTask getWPTask = 7; 11 optional PrepareCapTask prepCapTask = 8; 12 optional DisposeProdTask dispProdTask = 9; 13 optional DeliverProdTask deliProdTask = 10; 14 } The lowest layer is responsible for small tasks close to the hardware, e.g. to move to a waypoint, grab an object, detect an AR-tag or analyze the status light of a machine (see Section IV-A.2 and Section IV-A.1 for further details). We call the execution of these small tasks skills in the remainder 62
