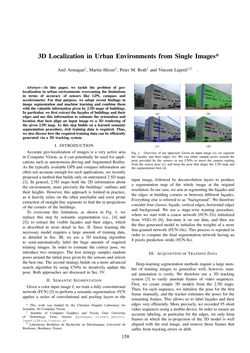

Seite - 158 - in Proceedings of the OAGM&ARW Joint Workshop - Vision, Automation and Robotics

3D Localization in Urban Environments from Single Images* Anil Armagan1, Martin Hirzer1, Peter M. Roth1 and Vincent Lepetit1,2 . Abstract—In this paper, we tackle the problem of geo- localization in urban environments overcoming the limitations in terms of accuracy of sensors like GPS, compass and accelerometer. For that purpose, we adopt recent findings in image segmentation and machine learning and combine them with the valuable information given by 2.5D maps of buildings. In particular, we first extract the fac¸ades of buildings and their edges and use this information to estimate the orientation and location that best align an input image to a 3D rendering of the given 2.5D map. As this step builds on a learned semantic segmentation procedure, rich training data is required. Thus, we also discuss how the required training data can be efficiently generated via a 3D tracking system. I. INTRODUCTION Accurate geo-localization of images is a very active area in Computer Vision, as it can potentially be used for appli- cations such as autonomous driving and Augmented Reality. As the typically available GPS and compass information are often not accurate enough for such applications, we recently proposed a method that builds only on untextured 2.5D maps [3]. In general, 2.5D maps hold the 2D information about the environment, more precisely the buildings’ outlines and their heights. However, this approach is limited in practice, as it heavily relies on the often unreliable and error prone extraction of straight line segments to find the re-projections of the corners of the buildings. To overcome this limitation, as shown in Fig. 1, we replace this step by semantic segmentation (i.e., [4] and [5]) to extract the visible fac¸ades and their edges, which is described in more detail in Sec. II. Since learning the necessary model requires a large amount of training data, as detailed in Sec. III, we use a 3D tracking algorithm to semi-automatically label the huge amount of required training images. In order to estimate the correct pose, we introduce two strategies. The first strategy samples random poses around the initial pose given by the sensors and selects the best one. The second strategy builds on a more advanced search algorithm by using CNNs to iteratively update the pose. Both approaches are discussed in Sec. IV. II. SEMANTIC SEGMENTATION Given a color input image I, we train a fully convolutional network (FCN) [5] to perform a semantic segmentation. FCN applies a series of convolutional and pooling layers to the * This work was funded by the Christian Doppler Laboratory for Semantic 3D Computer Vision. 1 Institute of Computer Graphics and Vision, Graz University of Technology, Graz, Austria {armagan, hirzer, pmroth, lepetit}@icg.tugraz.at 2 Laboratoire Bordelais de Recherche en Informatique, Universite´ de Bordeaux, Bordeaux, France (a) (b) (c) (d) Fig. 1. Overview of our approach: Given an input image (a), we segment the fac¸ades and their edges (b). We can either sample poses around the pose provided by the sensors or use CNNs to move the camera starting from the sensor pose (c), and keep the pose that aligns the 2.5D map and the segmentation best (d). input image, followed by deconvolution layers to produce a segmentation map of the whole image at the original resolution. In our case, we aim at segmenting the fac¸ades and the edges at building corners or between different fac¸ades. Everything else is referred to as “background”. We therefore consider four classes: fac¸ade, vertical edges, horizontal edges and background. We use a stage-wise training procedure, where we start with a coarse network (FCN-32s) initialized from VGG-16 [6], fine-tune it on our data, and then use the thus generated model to initialize the weights of a more fine-grained network (FCN-16s). This process is repeated in order to compute the final segmentation network having an 8 pixels prediction stride (FCN-8s). III. ACQUISITION OF TRAINING DATA Deep-learning segmentation methods require a large num- ber of training images to generalize well, however, man- ual annotation is costly. We therefore use a 3D tracking system [3] to easily annotate frames of video sequences. First, we create simple 3D models from the 2.5D maps. Then, for each sequence, we initialize the pose for the first frame manually, and the tracker estimates the poses for the remaining frames. This allows us to label fac¸ades and their edges very efficiently. More precisely, we recorded 95 short video sequences using a mobile device. In order to ensure an accurate labeling, in particular for the edges, we only keep frames in which the re-projection of the 3D model is well aligned with the real image, and remove those frames that suffer from tracking errors or drift. 158
