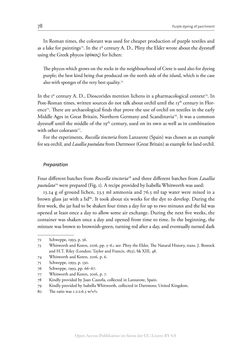

78 Purple dyeing of parchment
In Roman times, the colorant was used for cheaper production of purple textiles and
as a lake for paintings72. In the 1st century A. D., Pliny the Elder wrote about the dyestuff
using the Greek phycos (φύκος) for lichen:
The phycos which grows on the rocks in the neighbourhood of Crete is used also for dyeing
purple; the best kind being that produced on the north side of the island, which is the case
also with sponges of the very best quality.73
In the 1st century A. D., Dioscorides mention lichens in a pharmacological context74. In
Post-Roman times, written sources do not talk about orchil until the 13th century in Flor-
ence75. There are archaeological finds that prove the use of orchil on textiles in the early
Middle Ages in Great Britain, Northern Germany and Scandinavia76. It was a common
dyestuff until the middle of the 19th century, used on its own as well as in combination
with other colorants77.
For the experiments, Roccella tinctoria from Lanzarote (Spain) was chosen as an example
for sea orchil, and Lasallia pustulata from Dartmoor (Great Britain) as example for land orchil.
Preparation
Four different batches from Roccella tinctoria78 and three different batches from Lasallia
pustulata79 were prepared (Fig. 1). A recipe provided by Isabella Whitworth was used:
13.24 g of ground lichen, 23.5 ml ammonia and 76.5 ml tap water were mixed in a
brown glass jar with a lid80. It took about six weeks for the dye to develop. During the
first week, the jar had to be shaken four times a day for up to two minutes and the lid was
opened at least once a day to allow some air exchange. During the next five weeks, the
container was shaken once a day and opened from time to time. In the beginning, the
mixture was brown to brownish-green, turning red after a day, and eventually turned dark
72 Schweppe, 1993, p. 56.
73 Whitworth and Koren, 2016, pp. 5–6.; see: Pliny the Elder, The Natural History, trans. J. Bostock
and H.T. Riley (London: Taylor and Francis, 1855), bk XIII, 48.
74 Whitworth and Koren, 2016, p. 6.
75 Schweppe, 1993, p. 530.
76 Schweppe, 1993, pp. 66–67.
77 Whitworth and Koren, 2016, p. 7.
78 Kindly provided by Juan Cazorla, collected in Lanzarote, Spain.
79 Kindly provided by Isabella Whitworth, collected in Dartmoor, United Kingdom.
80 The ratio was 1.2:2:6.5 w/v/v.
