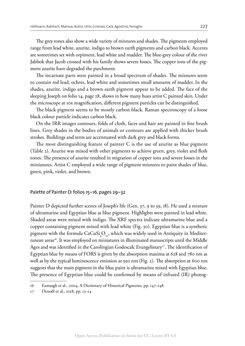

Bild der Seite - 227 -
Text der Seite - 227 -
Hofmann, Rabitsch, Malissa, Aceto, Uhlir, Griesser, Calà, Agostino, Fenoglio 227
The grey tones also show a wide variety of mixtures and shades. The pigments employed
range from lead white, azurite, indigo to brown earth pigments and carbon black. Accents
are sometimes set with orpiment, lead white and madder. The blue-grey colour of the river
Jabbok that Jacob crossed with his family shows severe losses. The copper ions of the pig-
ment azurite have degraded the parchment.
The incarnate parts were painted in a broad spectrum of shades. The mixtures seem
to contain red lead, ochres, lead white and sometimes small amounts of madder. In the
shades, azurite, indigo and a brown earth pigment appear to be added. The face of the
sleeping Joseph on folio 14, page 28, shows in how many hues artist C painted skin. Under
the microscope at 10x magnification, different pigment particles can be distinguished.
The black pigment seems to be mostly carbon black. Raman spectroscopy of a loose
black colour particle indicates carbon black.
On the IRR images contours, folds of cloth, faces and hair are painted in fine brush
lines. Grey shades in the bodies of animals or contours are applied with thicker brush
strokes. Buildings and tents are accentuated with dark grey and black forms.
The most distinguishing feature of painter C is the use of azurite as blue pigment
(Table 2). Azurite was mixed with other pigments to achieve green, grey, violet and flesh
tones. The presence of azurite resulted in migration of copper ions and severe losses in the
miniatures. Artist C employed a wide range of pigment mixtures to paint shades of blue,
green, pink, violet, and brown.
Palette of Painter D: folios 15–16, pages 29–32
Painter D depicted further scenes of Joseph’s life (Gen. 37, 9 to 39, 18). He used a mixture
of ultramarine and Egyptian blue as blue pigment. Highlights were painted in lead white.
Shaded areas were mixed with indigo. The XRF spectra indicate ultramarine blue and a
copper containing pigment mixed with lead white (Fig. 30). Egyptian blue is a synthetic
pigment with the formula CaCuSi4O10, which was widely used in Antiquity in Mediter-
ranean areas16. It was employed on miniatures in illuminated manuscripts until the Middle
Ages and was identified in the Carolingian Godescalc Evangelistary17. The identification of
Egyptian blue by means of FORS is given by the absorption maxima at 628 and 780 nm as
well as by the typical luminescence emission at 950 nm (Fig. 2). The absorption at 600 nm
suggests that the main pigment in the blue paint is ultramarine mixed with Egyptian blue.
The presence of Egyptian blue could be confirmed by means of infrared (IR) photog-
16 Eastaugh et al., 2004, A Dictionary of Historical Pigments, pp. 147–148.
17 Denoёl et al., 2018, pp. 13–14
