Page - 440 - in Book of Full Papers - Symposium Hydro Engineering

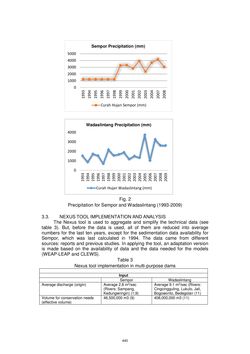

Fig. 2 Precipitation for Sempor and Wadaslintang (1993-2009) 3.3. NEXUS TOOL IMPLEMENTATION AND ANALYSIS The Nexus tool is used to aggregate and simplify the technical data (see table 3). But, before the data is used, all of them are reduced into average numbers for the last ten years, except for the sedimentation data availability for Sempor, which was last calculated in 1994. The data came from different sources: reports and previous studies. In applying the tool, an adaptation version is made based on the availability of data and the data needed for the models (WEAP-LEAP and CLEWS). Table 3 Nexus tool implementation in multi-purpose dams Input Sempor Wadaslintang Average discharge (origin) Average 2.8 m3/sec (Rivers: Sampang, Kedungwringin) (1,9) Average 9.1 m3/sec (Rivers: Cingcingguling, Lukulo, Jali, Bogowonto, Bedegolan (11) Volume for conservation needs (effective volume) 46,500,000 m3 (9) 408,000,000 m3 (11) 0 1000 2000 3000 4000 Wadaslintang Precipitation (mm) Curah Hujan Wadaslintang (mm) 0 1000 2000 3000 4000 5000 Sempor Precipitation (mm) Curah Hujan Sempor (mm) 440
