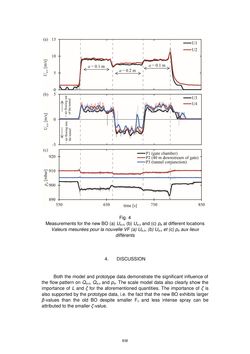

Fig. 4 Measurements for the new BO (a) Ua,o, (b) Ua,u and (c) pa at different locations Valeurs mesurées pour la nouvelle VF (a) Ua,o, (b) Ua,u et (c) pa aux lieux différents 4. DISCUSSION Both the model and prototype data demonstrate the significant influence of the flow pattern on Qa,o, Qa,u and pa. The scale model data also clearly show the importance of L and ζ for the aforementioned quantities. The importance of ζ is also supported by the prototype data, i.e. the fact that the new BO exhibits larger β-values than the old BO despite smaller Fc and less intense spray can be attributed to the smaller ζ-value. 838
