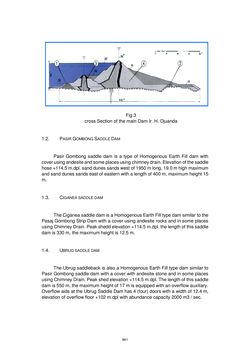

Fig.3 cross Section of the main Dam Ir. H. Djuanda 1.2. PASIR GOMBONG SADDLE DAM Pasir Gombong saddle dam is a type of Homogenous Earth Fill dam with cover using andesite and some places using chimney drain. Elevation of the saddle hose +114.5 m.dpl. sand dunes sands west of 1950 m long, 19.0 m high maximum and sand dunes sands east of eastern with a length of 400 m, maximum height 15 m. 1.3. CIGANEA SADDLE DAM The Ciganea saddle dam is a Homogenous Earth Fill type dam similar to the Pasaj Gombong Strip Dam with a cover using andesite rocks and in some places using Chimney Drain. Peak shedd elevation +114.5 m.dpl. the length of this saddle dam is 330 m, the maximum height is 12.5 m. 1.4. UBRUG SADDLE DAM The Ubrug saddleback is also a Homogenous Earth Fill type dam similar to Pasir Gombong saddle dam with a cover with andesite stone and in some places using Chimney Drain. Peak shed elevation +114.5 m.dpl. The length of this saddle dam is 550 m, the maximum height of 17 m is equipped with an overflow auxiliary. Overflow aids at the Ubrug Saddle Dam has 4 (four) doors with a width of 12.4 m, elevation of overflow floor +102 m.dpl with abundance capacity 2000 m3 / sec. 961
