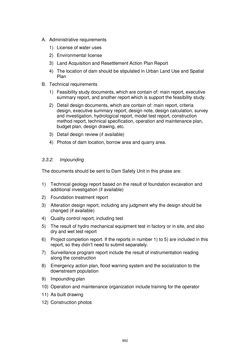

Page - 992 - in Book of Full Papers - Symposium Hydro Engineering

A. Administrative requirements 1) License of water uses 2) Environmental license 3) Land Acquisition and Resettlement Action Plan Report 4) The location of dam should be stipulated in Urban Land Use and Spatial Plan B. Technical requirements 1) Feasibility study documents, which are contain of: main report, executive summary report, and another report which is support the feasibility study. 2) Detail design documents, which are contain of: main report, criteria design, executive summary report, design note, design calculation, survey and investigation, hydrological report, model test report, construction method report, technical specification, operation and maintenance plan, budget plan, design drawing, etc. 3) Detail design review (if available) 4) Photos of dam location, borrow area and quarry area. 3.3.2. Impounding The documents should be sent to Dam Safety Unit in this phase are: 1) Technical geology report based on the result of foundation excavation and additional investigation (if available) 2) Foundation treatment report 3) Alteration design report, including any judgment why the design should be changed (if available) 4) Quality control report, including test 5) The result of hydro mechanical equipment test in factory or in site, and also dry and wet test report 6) Project completion report. If the reports in number 1) to 5) are included in this report, so they didn’t need to submit separately. 7) Surveillance program report include the result of instrumentation reading along the construction 8) Emergency action plan, flood warning system and the socialization to the downstream population 9) Impounding plan 10) Operation and maintenance organization include training for the operator 11) As built drawing 12) Construction photos 992
