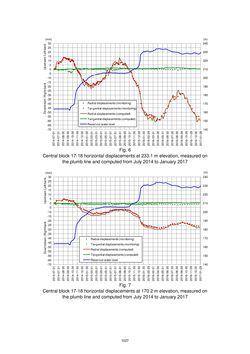

Fig. 6 Central block 17-18 horizontal displacements at 233.1 m elevation, measured on the plumb line and computed from July 2014 to January 2017 Fig. 7 Central block 17-18 horizontal displacements at 170.2 m elevation, measured on the plumb line and computed from July 2014 to January 2017 140 150 160 170 180 190 200 210 220 230 240 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 Radial displacements (monitoring) Tangential displacements (monitoring) Radial displacements (computed) Tangential displacements (computed) Reservoir water level Deslocamentos horizontais (v27) FP3 -Bloco 16-17 - Cota 233,06 m (mm) (m) 140 150 160 170 180 190 200 210 220 230 240 -70 -65 -60 -55 -50 -45 -40 -35 -30 -25 -20 -15 -10 -5 0 5 10 15 20 25 30 Radial displacements (monitoring) Tangential displacements (monitoring) Radial displacements (computed) Tengential displacements (computed) Reservoir water level Deslocamentos horizontais (v27) FP3 -Bloco 16-17 - Cota 170,22 m (mm) (m) 1027
