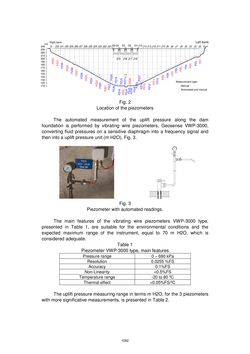

J16J17J18J19 J3J5J10 J2J6J12 J7J8J9J11J13J14J15J22 J20J21J23J28 J25J24J27J26J30J29J31J32 J4 120 220 210 110 130 160 150 140 170 180 190 200 Left bank 230 240 Right bank (m) ED D1D2D3D4 Measurement type: Manual Automated and manual Fig. 2 Location of the piezometers The automated measurement of the uplift pressure along the dam foundation is performed by vibrating wire piezometers, Geosense VWP-3000, converting fluid pressures on a sensitive diaphragm into a frequency signal and then into a uplift pressure unit (m H2O), Fig. 3. Fig. 3 Piezometer with automated readings. The main features of the vibrating wire piezometers VWP-3000 type, presented in Table 1, are suitable for the environmental conditions and the expected maximum range of the instrument, equal to 70 m H2O, which is considered adequate. Table 1 Piezometer VWP-3000 type, main features Pressure range 0 – 690 kPa Resolution 0.0255 %FS Accuracy 0.1%FS Non-Linearity <0.5%FS Temperature range -20 to 80 ºC Thermal effect <0.05%FS/ºC The uplift pressure measuring range in terms m H2O, for the 3 piezometers with more significative measurements, is presented in Table 2. 1092
