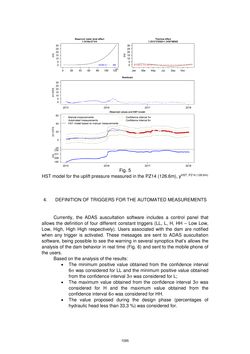

Fig. 5 HST model for the uplift pressure measured in the PZ14 (126.6m), yHST, PZ14 (126.6m) 4. DEFINITION OF TRIGGERS FOR THE AUTOMATED MEASUREMENTS Currently, the ADAS auscultation software includes a control panel that allows the definition of four different constant triggers (LL, L, H, HH – Low Low, Low, High, High High respectively). Users associated with the dam are notified when any trigger is activated. These messages are sent to ADAS auscultation software, being possible to see the warning in several synoptics that’s allows the analysis of the dam behavior in real time (Fig. 6) and sent to the mobile phone of the users. Based on the analysis of the results:  The minimum positive value obtained from the confidence interval 6 was considered for LL and the minimum positive value obtained from the confidence interval 3 was considered for L;  The maximum value obtained from the confidence interval 3 was considered for H and the maximum value obtained from the confidence interval 6 was considered for HH.  The value proposed during the design phase (percentages of hydraulic head less than 33,3 %) was considered for. 1095
