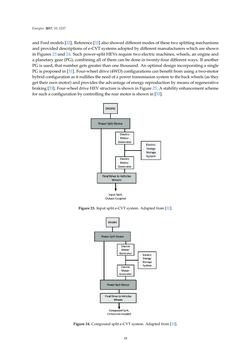

Image of the Page - 18 -
Text of the Page - 18 -
Energies 2017,10, 1217
andFordmodels [32]. Reference [32]alsoshoweddifferentmodesof these twosplittingmechanisms
andprovideddescriptionsofe-CVTsystemsadoptedbydifferentmanufacturerswhichareshown
inFigures23and24. Suchpower-splitHEVsrequire twoelectricmachines,wheels, anengineand
aplanetarygear (PG), combiningallof themcanbedone in twenty-fourdifferentways. If another
PGisused, thatnumbergetsgreater thanone thousand.Anoptimaldesign incorporatingasingle
PGisproposedin[31]. Four-wheeldrive (4WD)configurationscanbenefit fromusingatwo-motor
hybridconfigurationas itnullifies theneedofapowertransmissionsystemtothebackwheels (as they
get theirownmotor)andprovides theadvantageofenergyreproductionbymeansofregenerative
braking[33]. Four-wheeldriveHEVstructure is showninFigure25.Astabilityenhancementscheme
forsuchaconfigurationbycontrolling therearmotor is shownin[33].
Figure23. Inputsplit e-CVTsystem.Adaptedfrom[32].
Figure24.Compoundsplit e-CVTsystem.Adaptedfrom[32].
