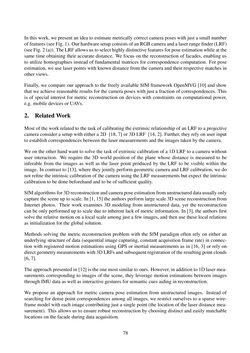

Image of the Page - 78 -
Text of the Page - 78 -
In thiswork,wepresentan idea toestimatemetricallycorrect cameraposeswith just a smallnumber
offeatures(seeFig.1). OurhardwaresetupconsistsofanRGBcameraandalaser rangefinder(LRF)
(seeFig.2(a)). TheLRFallowsustoselecthighlydistinctivefeaturesforposeestimationwhileat the
same time obtaining their accurate distance. We focus on the reconstruction of facades, enabling us
to utilize homographies instead of fundamental matrices for correspondence computation. For pose
estimation, we use laser points with known distance from the camera and their respective matches in
otherviews.
Finally, we compare our approach to the freely available SfM framework OpenMVG [10] and show
that we achieve reasonable results for the camera poses with just a fraction of correspondences. This
is of special interest for metric reconstruction on devices with constraints on computational power,
e.g. mobiledevices or UAVs.
2. RelatedWork
Most of the work related to the task of calibrating the extrinsic relationship of an LRF to a projective
camera consider a setup with either a 2D [18, 7] or 3D LRF [14, 2]. Further, they rely on user input
toestablishcorrespondences between the lasermeasurementsand the images takenby thecamera.
We on the other hand want to solve the task of extrinsic calibration of a 1D LRF to a camera without
user interaction. We require the 3D world position of the plane whose distance is measured to be
inferable from the images as well as the laser point produced by the LRF to be visible within the
image. In contrast to [13], where they jointly perform geometric camera and LRF calibration, we do
not refine the intrinsic calibration of thecamerausing theLRFmeasurementsbut expect the intrinsic
calibration tobedonebeforehandand tobeof sufficientquality.
SfMalgorithmsfor3Dreconstructionandcameraposeestimationfromunstructureddatausuallyonly
capture thesceneup toscale. In [1,15] theauthorsperformlargescale3Dscene reconstruction from
Internet photos. Their work examines 3D modeling from unstructured data, yet the reconstruction
can be only performed up to scale due to inherent lack of metric information. In [3], the authors first
solve the relative motion on a local scale among just a few images, and then use these local relations
as initialization for theglobal solution.
Methods solving the metric reconstruction problem with the SfM paradigm often rely on either an
underlying structure of data (sequential image capturing, constant acquisition frame rate) in connec-
tion with registered motion estimations using GPS or inertial measurements as in [16, 3] or rely on
directgeometrymeasurementswith3DLRFsandsubsequentregistrationoftheresultingpointclouds
[6,7].
Theapproachpresented in [12] is theonemost similar toours. However, inaddition to1Dlasermea-
surements corresponding to images of the scene, they leverage motion estimations between images
through IMUdataaswell as interactivegestures for semanticcuesaiding in reconstruction.
We propose an approach for metric camera pose estimation from unstructured images. Instead of
searching for dense point correspondences among all images, we restrict ourselves to a sparse wire-
frame model with each image contributing just a single point (the location of the laser distance mea-
surement). This allows us to ensure robust reconstruction by choosing distinct and easily matchable
locationson the facadeduringdataacquisition.
78
