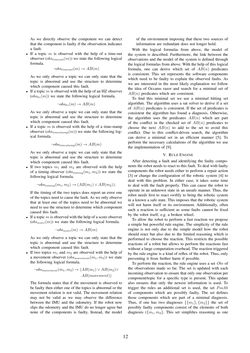

Image of the Page - 12 -
Text of the Page - 12 -
As we directly observe the component we can detect
that the component is faulty if the observation indicates
a fault.
• If a topicm is observed with the help of a time-out
observer (obstimeout(m)) we state the following logical
formula.
¬obstimeout(m)→AB(m)
As we only observe a topic we can only state that the
topic is abnormal and use the structure to determine
which component caused this fault.
• If a topicm is observed with the help of an HZ observer
(obshz(m)) we state the following logical formula.
¬obshz(m)→AB(m)
As we only observe a topic we can only state that the
topic is abnormal and use the structure to determine
which component caused this fault.
• If a topicm is observed with the help of a time-stamp
observer (obstimestamp(m)) we state the following log-
ical formula.
¬obstimestamp(m)→AB(m)
As we only observe a topic we can only state that the
topic is abnormal and use the structure to determine
which component caused this fault.
• If two topicsm1 andm2 are observed with the help
of a timing observer (obstiming(m1,m2)) we state the
following logical formula.
¬obstiming(m1,m2)→ (AB(m1)∨AB(m2)).
If the timing of the two topics does report an error one
of the topics need to cause the fault. As we only observe
that at least one of the topics need to be abnormal we
need to use the structure to determine which component
caused this fault.
• Ifa topicm isobservedwith thehelpofascoreobserver
(obsscore(m)) we state the following logical formula.
¬obsscore(m)→AB(m)
As we only observe a topic we can only state that the
topic is abnormal and use the structure to determine
which component caused this fault.
• If two topicsm1 andm2 are observed with the help of
a movement observer (obsmovement(m1,m2)) we state
the following logical formula.
¬obsmovement(m1,m2)→ (AB(m1)∨AB(m2)∨
AB(movement))
The formula states that if the movement is observed to
be faulty then either one of the topics is abnormal or the
movement relation is not valid. The movement relation
may not be valid as we may observe the difference
between the IMU and the odometry. If the robot now
slips the odometry and the IMU do no longer agree but
none of the components is faulty. Instead, the model of the environment imposing that these two sources of
information are redundant does not longer hold.
With the logical formulas from above, the model of
the system is described. Furthermore, the link between the
observations and the model of the system is defined through
the logical formulas from above. With the help of this logical
formula, one can derive which set of AB(n) predicates
is consistent. This set represents the software components
which need to be faulty to explain the observed faults. As
we are interested in the most likely explanation we follow
the idea of Occams razor and search for a minimal set of
AB(n) predicates which are consistent.
To find this minimal set we use a minimal hitting set
algorithm. The algorithm uses a sat solver to derive if a set
ofAB(n) predicates is consistent. If the set of predicates is
consistent the algorithm has found a diagnosis. Otherwise,
the algorithm uses the predicates AB(n) which are part
of the conflict in the checked set of AB(n) predicates to
choose the next AB(n) to add to the set to avoid this
conflict. Due to this conflict-driven search, the algorithm
can derive a minimal set in an efficient manner [5]. To
perform the necessary calculations of the algorithm we use
the implementation of [9].
V. RULE ENGINE
After detecting a fault and identifying the faulty compo-
nents the robot needs to react to this fault. To deal with faulty
components the robot needs either to perform a repair action
[3] or change the configuration of the robotic system [4] to
deal with this problem. In either case, it takes some time
to deal with the fault properly. This can cause the robot to
operate in an unknown state in an unsafe manner. Thus, the
robot needs first to react swiftly to bring the robotic system
in a known a safe state. This imposes that the robotic system
will not harm itself or its environment. Additionally, often
such a reaction is sufficient as some faults cannot be fixed
by the robot itself, e.g. a broken wheel.
To allow the robot to perform a fast reaction we propose
a simple but powerful rule engine. The simplicity of the rule
engine is not only due to the simple model how the robot
should react but also due to the limited reasoning which is
performed to choose the reaction. This restricts the possible
reactions of a robot but allows to perform the reactions fast
without a large computation overhead. The reaction triggered
by the rule engine is a kind of reflex of the robot. Thus, only
preventing it from further harm if possible.
To perform the reaction, the rule engine uses a setObs of
the observations made so far. The set is updated with each
incoming observation to ensure that only one observation per
component/topic for a specific type is present. This update
also ensures that only the newest information is used. To
trigger the rules an additional set is used, the set PosAb
of components which are possibly faulty. The set defines
those components which are part of a minimal diagnosis.
Thus, if one has two diagnoses {{m1},{m2}} the set of
possibly faulty components consist of the elements of both
diagnosis ({m1,m2}. This set simplifies reasoning as one
12
