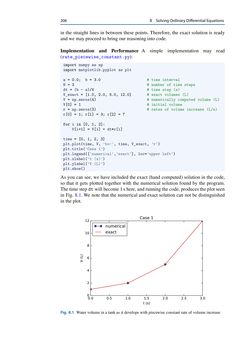

206 8 SolvingOrdinaryDifferentialEquations in the straight lines in between these points. Therefore, the exact solution is ready andwe mayproceed tobringour reasoningintocode. Implementation and Performance A simple implementation may read (rate_piecewise_constant.py): import numpy as np import matplotlib.pyplot as plt a = 0.0; b = 3.0 # time interval N = 3 # number of time steps dt = (b - a)/N # time step (s) V_exact = [1.0, 2.0, 5.0, 12.0] # exact volumes (L) V = np.zeros(4) # numerically computed volume (L) V[0] = 1 # initial volume r = np.zeros(3) # rates of volume increase (L/s) r[0] = 1; r[1] = 3; r[2] = 7 for i in [0, 1, 2]: V[i+1] = V[i] + dt*r[i] time = [0, 1, 2, 3] plt.plot(time, V, ’bo-’, time, V_exact, ’r’) plt.title(’Case 1’) plt.legend([’numerical’,’exact’], loc=’upper left’) plt.xlabel(’t (s)’) plt.ylabel(’V (L)’) plt.show() As you can see, we have included the exact (hand computed) solution in the code, so that it gets plotted together with the numerical solution found by the program. Thetimestepdtwillbecome1shere,andrunningthecode,producestheplot seen in Fig. 8.1. We note that the numerical and exact solution can not be distinguished in theplot. Fig. 8.1 Watervolume in a tank as it develops withpiecewise constant rate of volume increase
