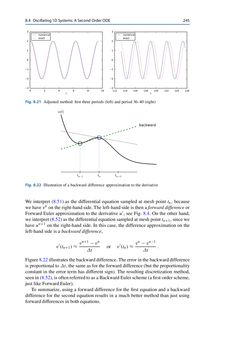

8.4 Oscillating1DSystems:ASecondOrderODE 245 Fig. 8.21 Adjusted method: first three periods (left) and period 36–40 (right) Fig. 8.22 Illustration of a backward difference approximation to the derivative We interpret (8.51) as the differential equation sampled at mesh point tn, because wehavevn ontheright-handside.The left-handside is thena forwarddifferenceor Forward Euler approximation to the derivativeu′, see Fig. 8.4. On the other hand, weinterpret (8.52)as thedifferentialequationsampledatmeshpoint tn+1, sincewe haveun+1 on the right-handside. In this case, the difference approximationon the left-handside is abackwarddifference, v′(tn+1)≈ v n+1 −vn Δt or v′(tn)≈ v n−vn−1 Δt . Figure8.22illustrates thebackwarddifference.Theerrorin thebackwarddifference isproportionaltoΔt, thesameasfor the forwarddifference(but theproportionality constant in the error term has different sign). The resulting discretization method, seenin(8.52), isoftenreferredtoasaBackwardEulerscheme(afirst-orderscheme, just like ForwardEuler). To summarize, using a forward difference for the first equation and a backward difference for the second equation results in a much better method than just using forwarddifferences inbothequations.
