a b c d

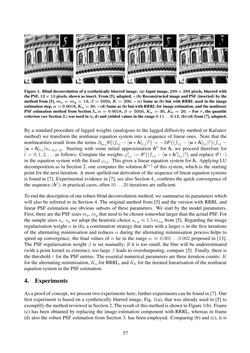

Figure 1. Blinddeconvolutionof a synthetically blurred image. (a) Input image,289×289pixels, blurredwith
thePSF,13×13pixels, shownas insert. From[5], adapted. – (b)Reconstructed imageandPSF(inserted)by the
method from [5],mx=my=13,β=5050,K=200. – (c) Sameas (b) butwithRRRLused in the image
estimationstep,α=0.0018,Ku=30. – (d)Sameas(b)butwithRRRLfor imageestimation,andthenonlinear
PSF estimationmethod fromSection 3.,α=0.0018,β=5050,Ku=30,Kh=20. – For τ, the quantile
criterion(seeSection2.)wasused in (c,d)andyieldedvalues in therange0.11. ..0.12. (b)–(d) from[7],adapted.
By a standard procedure of lagged weights (analogous to the lagged diffusivity method or Kacˇanov
method) we transform the nonlinear equation system into a sequence of linear ones. Note that the
nonlinearities result from the terms ∂hp,qΦ
( (fi,j− [u∗h]i,j)2 ) =−2Φ′((fi,j− [u∗h]i,j)2)(fi,j−
[u ∗h]i,j)ui−p,j−q. Starting with some initial approximationh0 forh, we proceed therefore for
l= 0,1,2, . . . as follows: Compute the weightsϕli,j := Φ
′((fi,j− [u∗hl]i,j)2) and replaceΦ′(·)
in the equation system with the fixedϕi,j. This gives a linear equation system forh. Applying LU
decomposition as in Section 2. one computes the solutionhl+1 of this system, which is the starting
point for the next iteration. A more spelled-out derivation of the sequence of linear equation systems
is found in [7]. Experimental evidence in [7], see also Section 4., confirms the quick convergence of
the sequence (hl); inpractical cases, often10 . . .20 iterationsare sufficient.
Toend thedescriptionofour robustblinddeconvolutionmethod,wesummarise itsparameterswhich
will also be referred to in Section 4. The original method from [5] and the version with RRRL and
linear PSF estimation use obvious subsets of these parameters. We start by the model parameters.
First, thereare thePSFsizesmx,my thatneed tobechosensomewhat larger than theactualPSF.For
the sample sizessx, sywe adopt the heuristic choicesx,y≈ 1.5mx,y from [5]. Regarding the image
regularisation weightα in (6), a continuation strategy that starts with a largerα in the first iterations
of the alternating minimisation and reducesα during the alternating minimisation process helps to
speed up convergence; the final values ofα lie in the rangeα≈ 0.001 . . .0.002 proposed in [13].
The PSF regularisation weightβ is set manually; if it is too small, the blur will be underestimated
(with a point kernel as extreme); too largeβ leads to oversharpening, compare [5]. Finally, there is
the threshold τ for the PSF entries. The essential numerical parameters are three iteration counts:K
for the alternating minimisation,Ku for RRRL, andKh for the iterated linearisation of the nonlinear
equationsystemin thePSF estimation.
4. Experiments
Asaproofofconcept,wepresent twoexperimentshere; furtherexperimentscanbefoundin[7]. Our
first experiment is based on a synthetically blurred image, Fig. 1(a), that was already used in [5] to
exemplify themethodreviewedinSection2.Theresultof thismethodisshowninFigure1(b). Frame
(c) has been obtained by replacing the image estimation component with RRRL, whereas in frame
(d) also the robust PSF estimation from Section 3. has been employed. Comparing (b) and (c), it is
57
