Page - 114 - in Induktionsfügen von thermoplastischen Faserverbundwerkstoffen

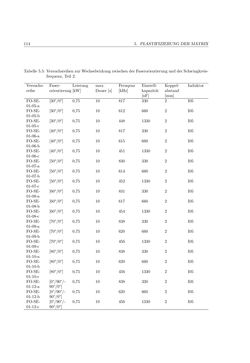

114 5. PLASTIFIZIERUNGDERMATRIX Tabelle 5.5: VersuchsreihenzurWechselwirkungzwischenderFaserorientierungundderSchwingkreis- frequenz, Teil 2. Versuchs- reihe Faser- orientierung Leistung [kW] max. Dauer [s] Freuqenz [kHz] Einstell- kapazität [nF] Koppel- abstand [mm] Induktor FO-SE- 01-05-a [30°/0°] 0,75 10 817 330 2 I05 FO-SE- 01-05-b [30°/0°] 0,75 10 612 660 2 I05 FO-SE- 01-05-c [30°/0°] 0,75 10 448 1330 2 I05 FO-SE- 01-06-a [40°/0°] 0,75 10 817 330 2 I05 FO-SE- 01-06-b [40°/0°] 0,75 10 615 660 2 I05 FO-SE- 01-06-c [40°/0°] 0,75 10 451 1330 2 I05 FO-SE- 01-07-a [50°/0°] 0,75 10 830 330 2 I05 FO-SE- 01-07-b [50°/0°] 0,75 10 614 660 2 I05 FO-SE- 01-07-c [50°/0°] 0,75 10 452 1330 2 I05 FO-SE- 01-08-a [60°/0°] 0,75 10 831 330 2 I05 FO-SE- 01-08-b [60°/0°] 0,75 10 617 660 2 I05 FO-SE- 01-08-c [60°/0°] 0,75 10 454 1330 2 I05 FO-SE- 01-09-a [70°/0°] 0,75 10 838 330 2 I05 FO-SE- 01-09-b [70°/0°] 0,75 10 620 660 2 I05 FO-SE- 01-09-c [70°/0°] 0,75 10 456 1330 2 I05 FO-SE- 01-10-a [80°/0°] 0,75 10 838 330 2 I05 FO-SE- 01-10-b [80°/0°] 0,75 10 620 660 2 I05 FO-SE- 01-10-c [80°/0°] 0,75 10 456 1330 2 I05 FO-SE- 01-12-a [0°/90°/- 90°/0°] 0,75 10 838 330 2 I05 FO-SE- 01-12-b [0°/90°/- 90°/0°] 0,75 10 620 660 2 I05 FO-SE- 01-12-c [0°/90°/- 90°/0°] 0,75 10 456 1330 2 I05
